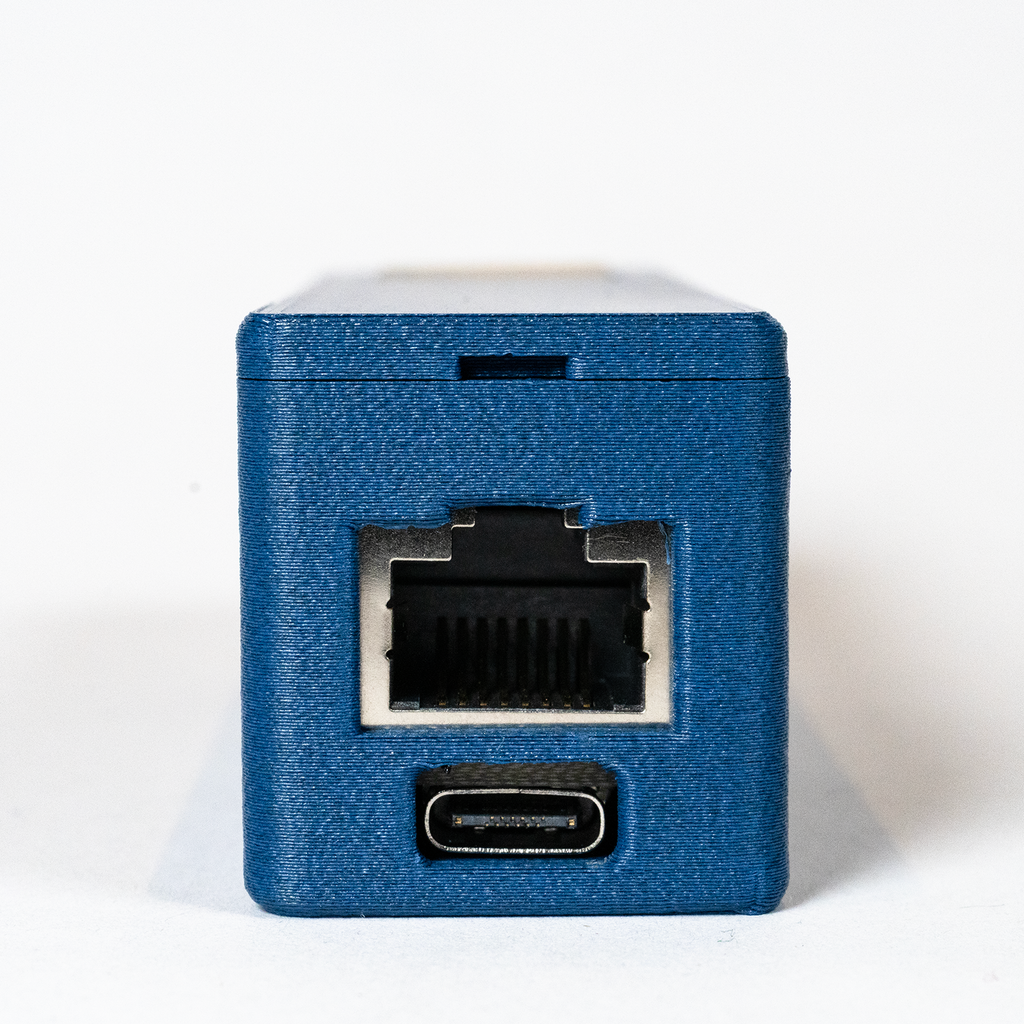

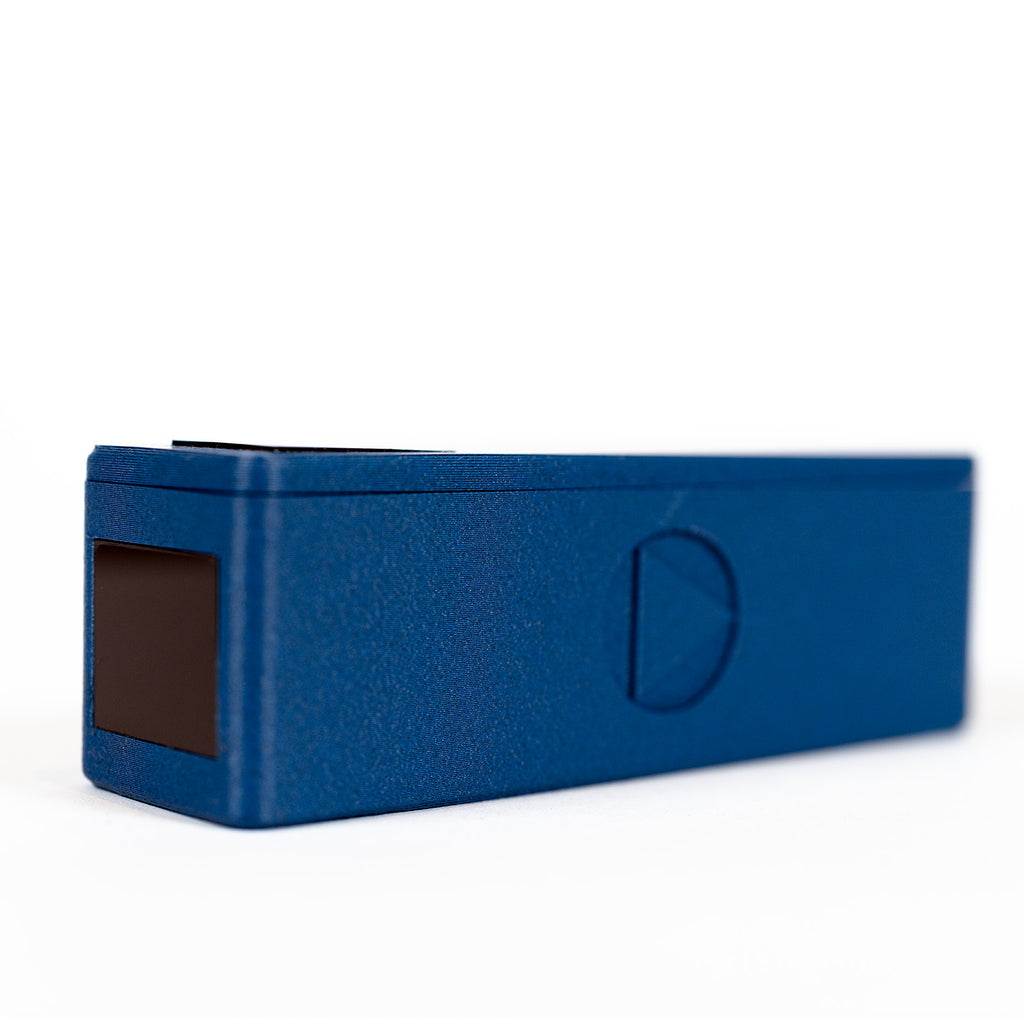

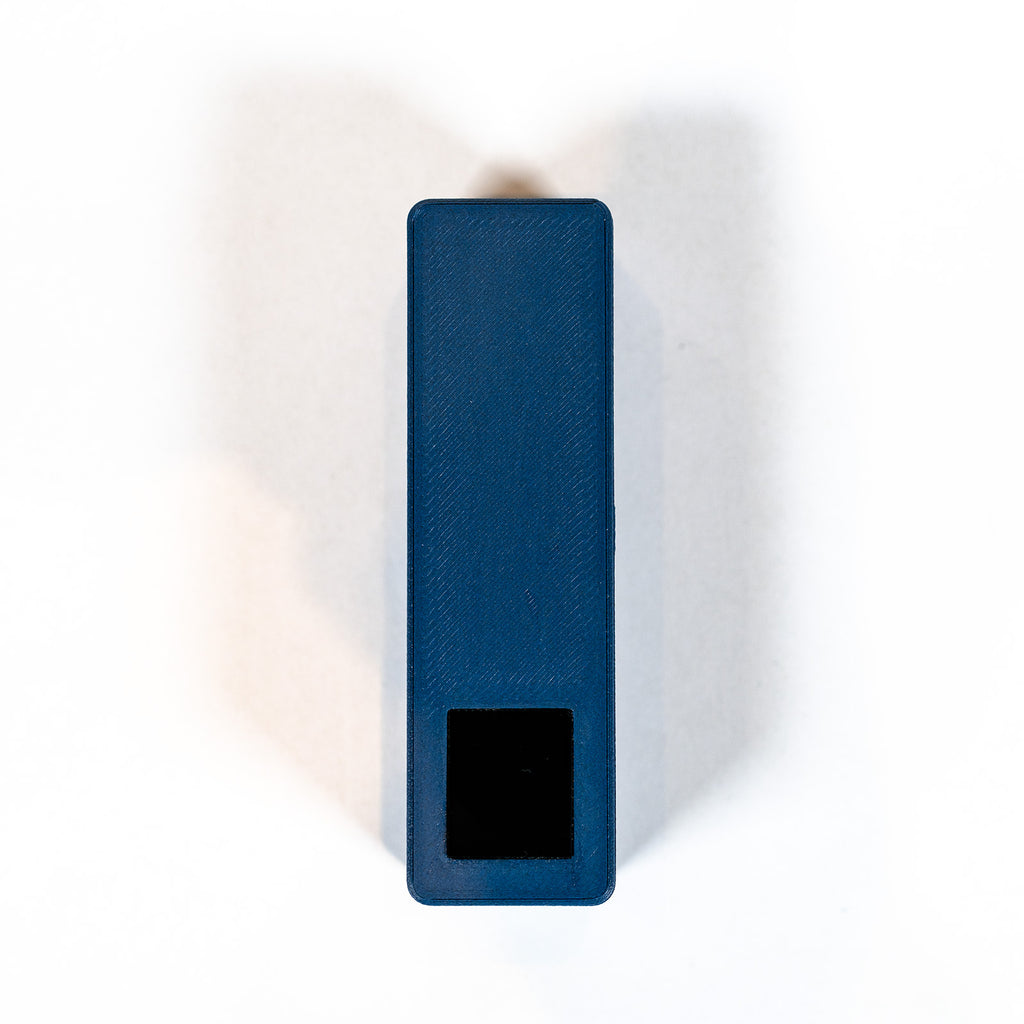

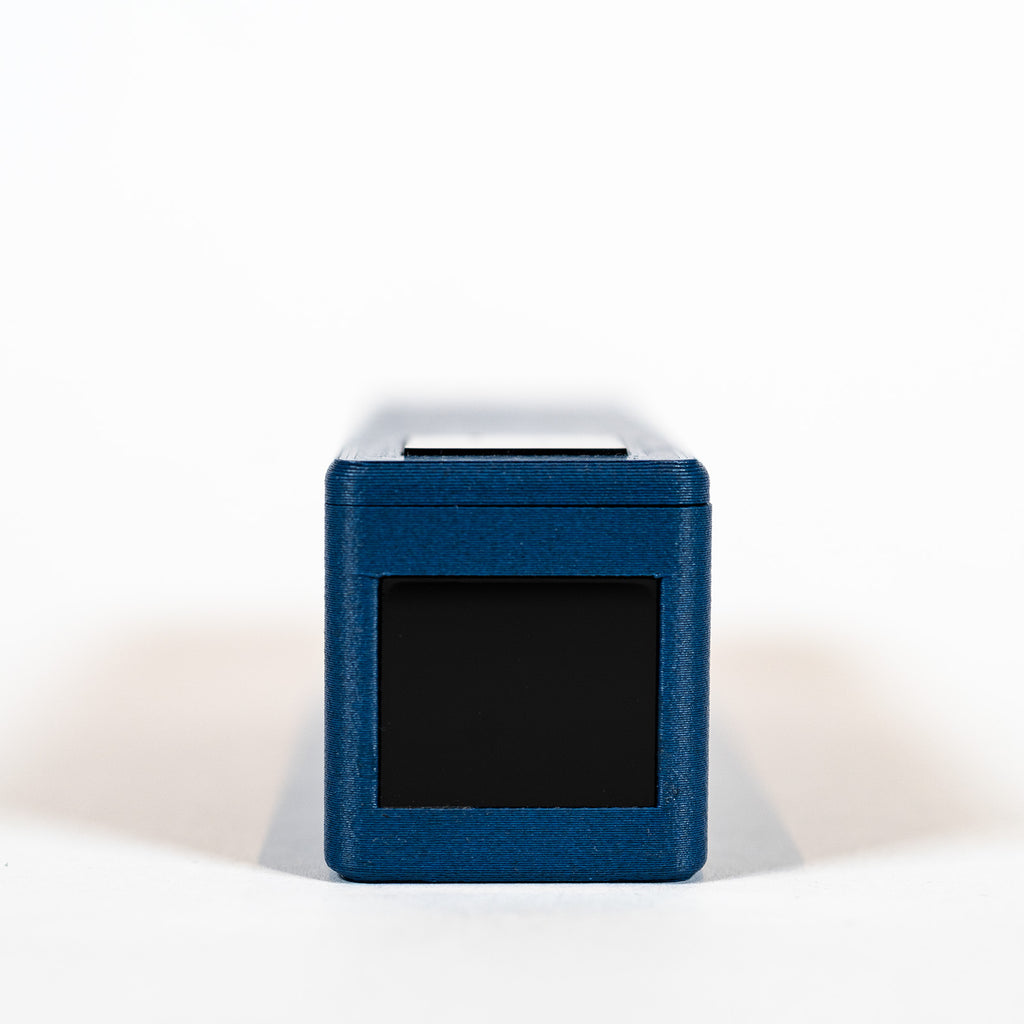

Roomie IR100E – IR Adapter for Ethernet

Roomie IR100 adapters are supported by Roomie Remote X available for iOS, macOS, and tvOS. Roomie Remote 9.2.4 also provides support. Firmware updates are managed by Roomie Remote X automatically. Roomie IR100 works directly via your Ethernet and does not require any additional hubs or adapters or emitter cables.

Roomie Remote includes hundreds of thousands of infrared codes for virtually all devices with over 15 years of experience using rock-solid codes, and also supports adding codes via the Custom Devices feature. After adding the adapter to your network and positioning the adapter in line or sight or adjacent to the target device, add the device in Roomie Remote X.

One adapter controls an unlimited number of devices in range. Just keep adding more devices in Roomie as needed.

Technical Specifications

• Dimensions 91 × 27 × 29 mm (3.58 × 1.06 × 1.14 in)
• Weight 42 g (1.48 oz)
• Connectivity 10/100 Mbps Fast Ethernet (RJ45)
• Processor ESP32-S3 dual-core Xtensa LX7 @ 240 MHz, 512 KB SRAM, 16 MB Flash
• Infrared Transmitter High-Power IR LED Emitter (950 nm) – up to 10 m (33 ft) range forward or upwards. IR emits in both directions.

• Power 5 V ⎓ 500 mA via USB-C Typical: 220 mA (active transmit), <120 mA idle, power adapter and USB-C cable not included
• Enclosure Carbon-fiber reinforced PETG, royal blue finish, Heat resistant to 80 °C (176 °F) continuous / 100 °C (212 °F) short-term – safe for mounting behind TVs, projectors, or in ceiling corners.
• Mounting 3M VHB adhesive pad with hook and loop removal included

• Operating Temperature 0 °C to 60 °C (32 °F to 140 °F)
• Certifications FCC, CE, RoHS
• Assembled in USA

What's Included

• IR100E Adapter

• QuickStart Card

• 3M VHB Resealable Hook and Loop Fastener

• 1-Year Limited Warranty: Covers manufacturing defects. Excludes misuse, water damage, or modifications. Opening the case voids warranty. Email support@roomieremote.com with your serial number for claims.
