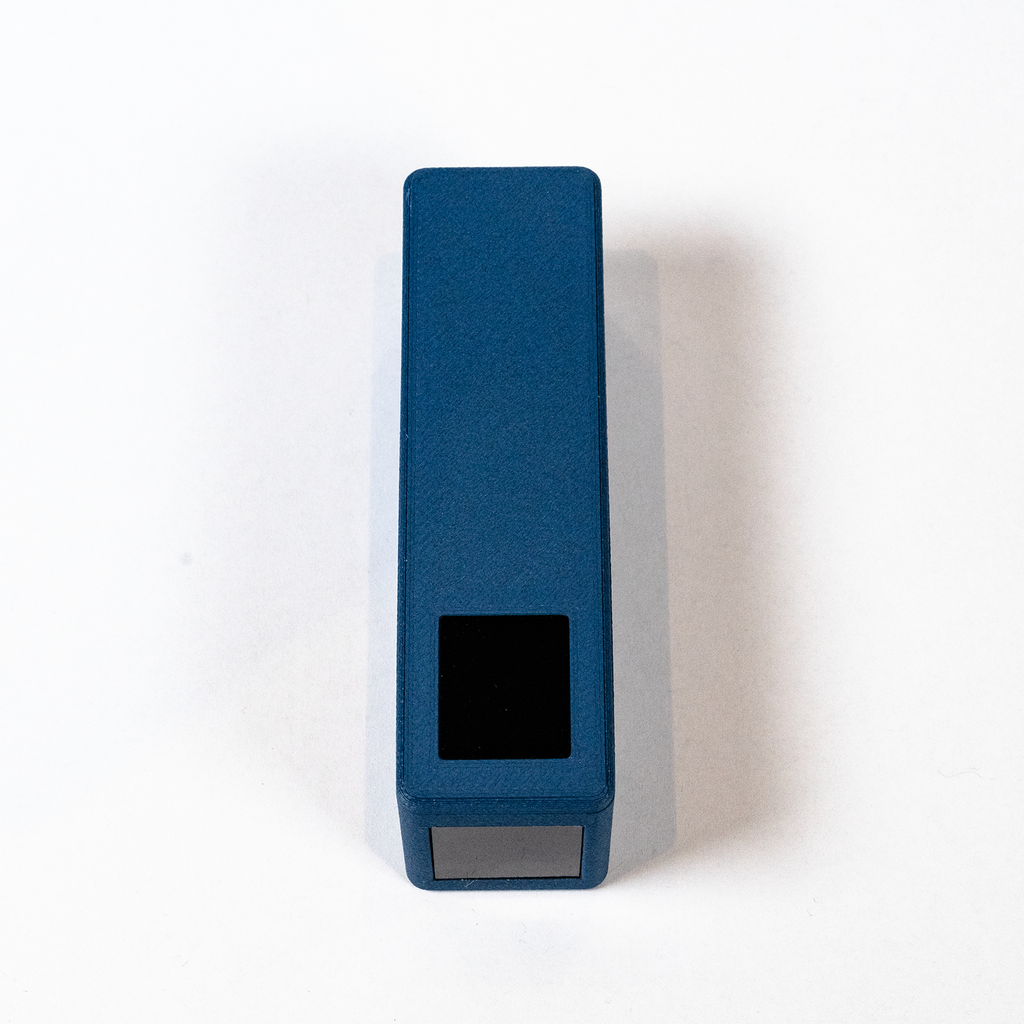

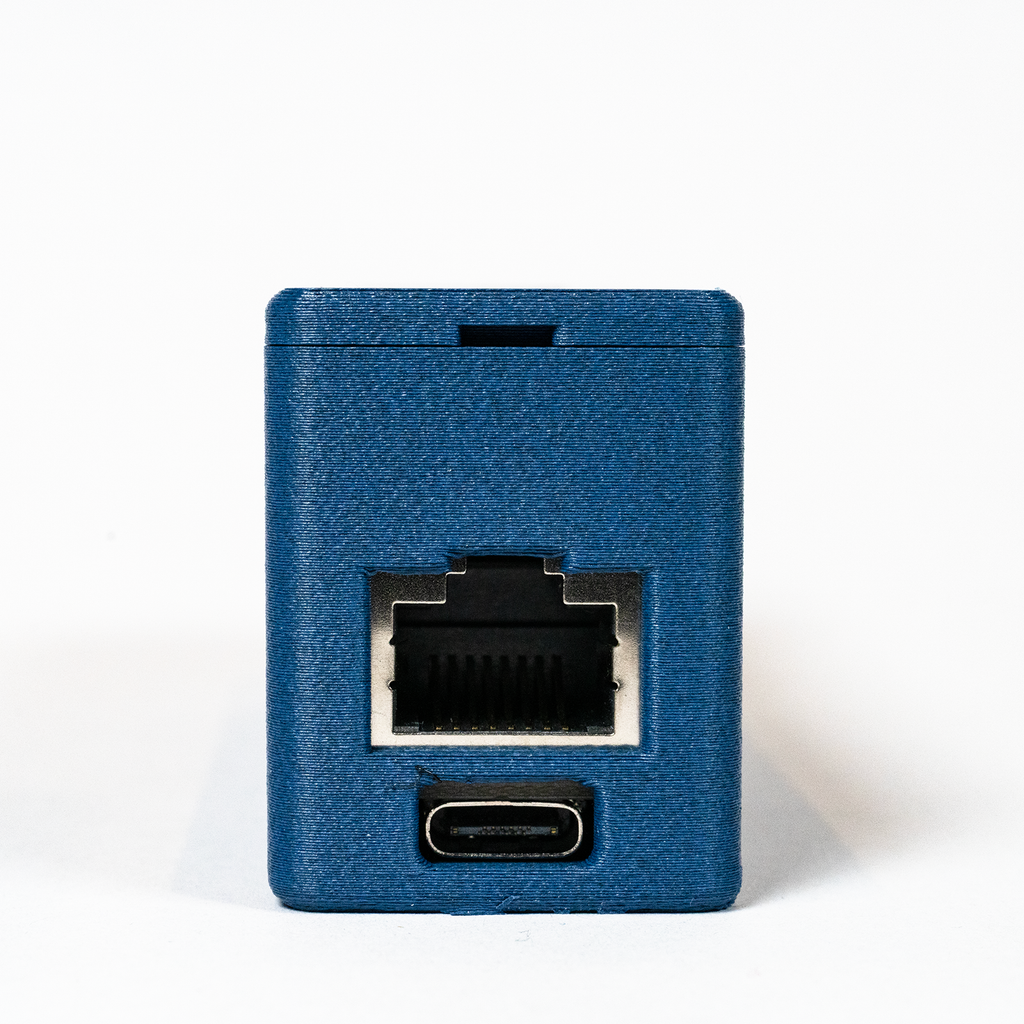

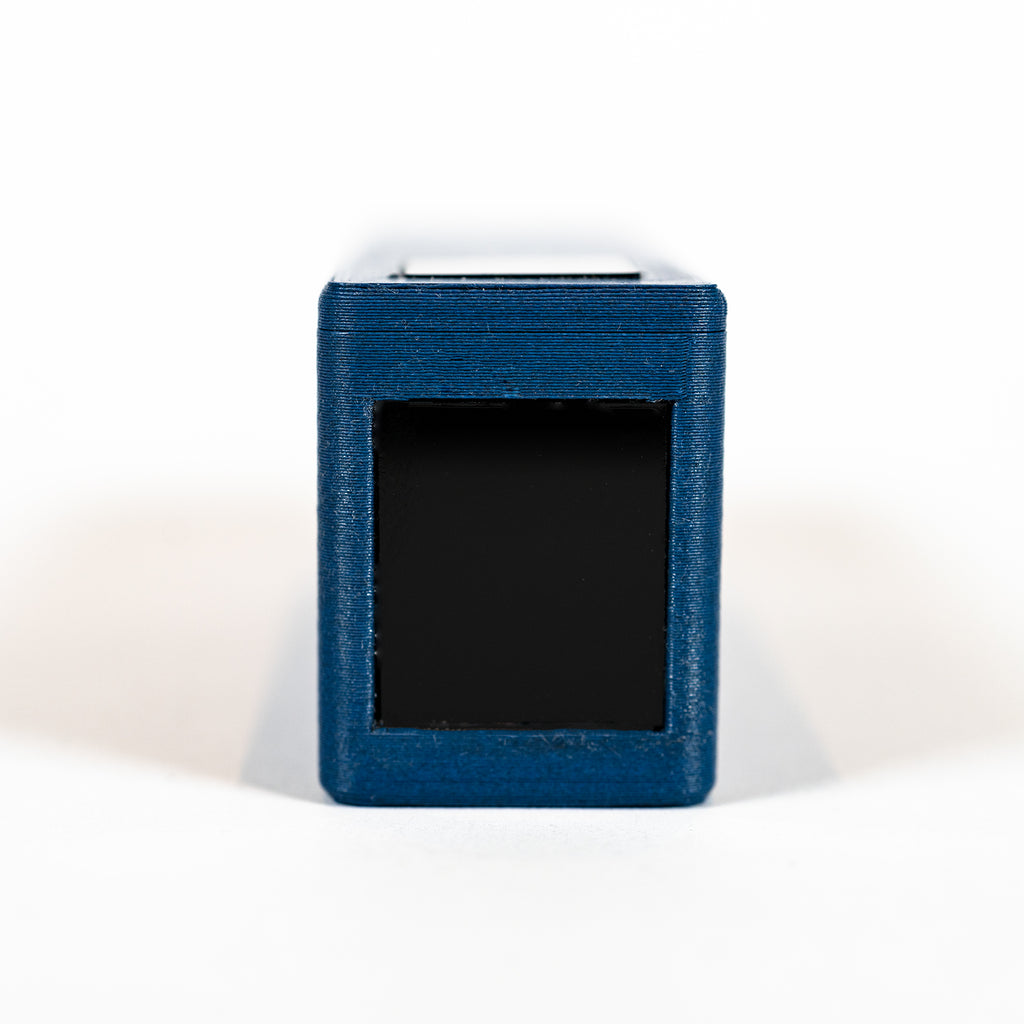

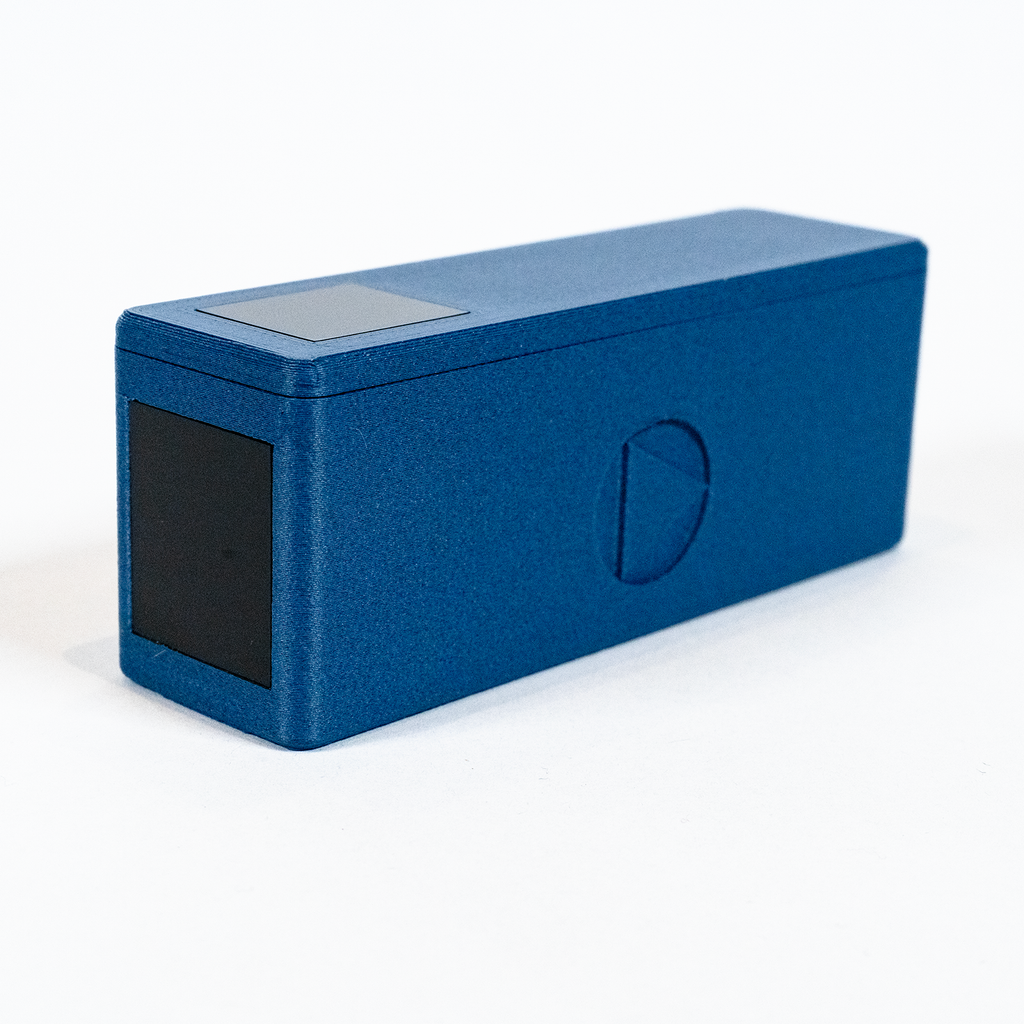

Roomie IR100EP – IR Adapter for Ethernet (Power-over-Ethernet)

Roomie IR100 connects any number of iOS or macOS devices to any number of infrared devices. Roomie IR100EP works directly via Ethernet and does not require any additional hubs or adapters or emitter cables.

Roomie IR100 adapters are supported by Roomie Remote X and Roomie Remote 9.2.4 and above, and also provide an open network API. Firmware updates are managed by Roomie Remote X.

This model provides Power over Ethernet support and does not require a separate power connection as long as it is plugged into a PoE capable switch. You can also connect it to USB-C for power if needed.

Every Roomie IR100 adapter also doubles as a Proximity Beacon: using its built-in Bluetooth Low Energy radio, Roomie Remote can sense which room your iPhone or iPad is in and automatically switch you to that room as you move through your home. Proximity Beacon support requires Roomie Remote 10.4 or later on iOS or iPadOS and is not available on macOS.

Roomie Remote includes hundreds of thousands of infrared codes for virtually all devices with over 15 years of experience refining rock-solid codes, and also supports adding codes via the Custom Devices feature. After adding the adapter to your network and positioning the adapter in line or sight or adjacent to the target device, add the device in Roomie Remote.

Technical Specifications

• Dimensions 91 × 27 × 35 mm (3.58 × 1.06 × 1.38 in)
• Weight 60 g (2.12 oz)
• Connectivity 10/100 Mbps Fast Ethernet (RJ45) with 802.3af PoE (Class 0) USB-C fallback power
• Bluetooth Bluetooth 5 LE – powers the Proximity Beacon feature; requires Roomie Remote 10.4+ on iOS/iPadOS (not macOS)
• Processor ESP32-S3 dual-core Xtensa LX7 @ 240 MHz, 512 KB SRAM, 16 MB Flash
• Infrared Transmitter High-Power IR LED Emitter (950 nm) – up to 10 m (33 ft) range forward or upwards. IR emits in both directions.
• Power 802.3af PoE (37–57 V) or 5 V ⎓ 1 A via USB-C Typical: 240 mA @ 48 V (active transmit), <140 mA idle, separate USB-C power adapter and cable not included
• Enclosure PETG, royal blue finish, Heat resistant to 80 °C (176 °F) continuous / 100 °C (212 °F) short-term – safe for mounting behind TVs, projectors, or in ceiling corners.
• Mounting 3M VHB adhesive pad with hook and loop removal included
• Operating Temperature 0 °C to 60 °C (32 °F to 140 °F)
• Certifications FCC, CE, RoHS
• Assembled in USA

What's Included

• IR100EP Adapter
• QuickStart Card
• 3M VHB Resealable Hook and Loop Fastener
• 1-Year Limited Warranty: Covers manufacturing defects. Excludes misuse, water damage, or modifications. Opening the case voids warranty. Email support@roomieremote.com with your serial number for claims.
